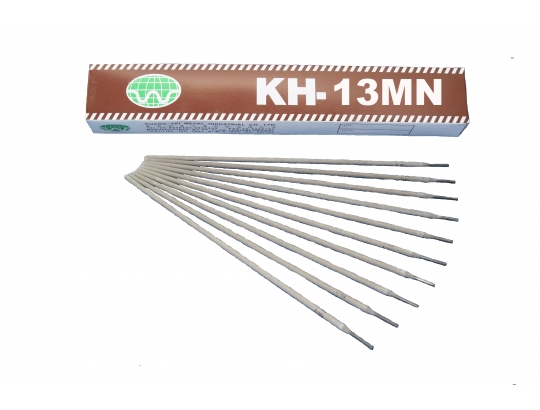

| Product name：KH-13MN |
| Classification：A5.13 / EFeMn-A |
  |
- Weld metal is an austenite structure with 13%Mn-4%Ni and provides excellent crack resistance.
- It provides good machining properties, good work-hardening properties, good toughness and good resistance to abrasion accompanied by heavy impact.
- It is suitable for repairing crusher cones and studding of 13%Mn cast steel.
|
Welding Instruction |
|||||||||
|
(1) Dry the electrodes at 300-350°C for 30-60 minutes before use. (2) Preheat is not needed. Use low current to prevent overheat. (3) Keep good ventilation during welding. |
|||||||||
|
Typical Chemical Composition of Weld Metal (wt. %) |
|||||||||
|
C |
Si |
Mn |
Ni |
||||||
|
0.680 |
0.50 |
13.51 |
3.71 |
||||||
|
Typical Hardness of Weld Metal |
|||||||||
|
Hardness Condition |
Vicker’s hardness （HV） |
Rockwell’s hardness （HRC） |
Shore’s hardness （HS） |
||||||
|
Interpass temp.≤150°C |
190 |
8.5 |
28 |
||||||
|
Work-hardened |
430 |
43 |
58 |
||||||
|
Size and Suggested Operating Range (AC or DC+) |
|||||||||
|
Diameter x Length(mm) |
3.2x350 |
4.0x400 |
5.0x400 |
||||||
|
Amp |
90~140 |
140~190 |
190~250 |
||||||
