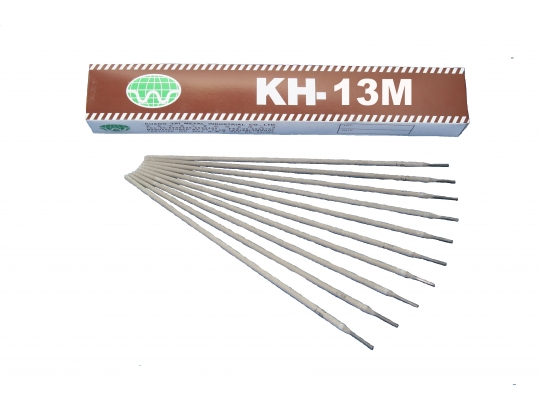

| Product name：KH-13M |
| Classification：A5.13 |
  |
- Weld metal remains a stable austenite structure even with air or water cooling after welding.
- It provides good resistance to abrasion accompanied by heavy impact and good toughness. However, it is not resistant to abrasive wear.
- It is suitable for repairing constructions, mining, railroads and steel mills.
- It is ideal for melt-in fusion and welding of high manganese steel.
|
Welding Instruction |
||||||||
|
(1) Dry the electrodes at 300-350°C for 30-60 minutes before use. (2) Take skip welding method to prevent the embrittlement because the local overheat (above 260°C) causes the carbides to precipitate. The weld bead should not exceed 20mm (W) × 5mm (T) × 100mm (L). (3) The old hardfacing layer should be gouged first. Cracks are beveled by carbon cutting electrode and repaired by KS-309 before welding with KH |
||||||||
|
Typical Chemical Composition of Weld Metal (wt. %) |
||||||||
|
C |
Si |
Mn |
||||||
|
0.650 |
0.35 |
12.00 |
||||||
|
Typical Hardness of Weld Metal |
||||||||
|
Hardness Condition |
Vicker’s hardness （HV） |
Rockwell’s hardness （HRC） |
Shore’s hardness （HS） |
|||||
|
Interpass temp.≤150°C |
195 |
10 |
28 |
|||||
|
Work-hardened |
510 |
50 |
66 |
|||||
|
Size and Suggested Operating Range (AC or DC+) |
||||||||
|
Diameter x Length(mm) |
3.2x350 |
4.0x350 |
5.0x350 |
|||||
|
Amp |
90~140 |
140~190 |
190~250 |
|||||
