KTS-60
Type of coating: 100%Ar
KTS-60 is a 65%Ni-30%Cu-3%Mn-2%Ti Ni-based alloy.
KUANG TAI METAL INDUSTRIAL CO., LTD.
廣泰金屬工業股份有限公司
No.20, Gongye Rd., Erzhen, Guantian Dist.
Tainan City 72042, Taiwan
TEL：886-6-6987615 FAX：886-6-6987315
▎Classification
| AWS A5.14/A5.14M | ERNiCu-7 |
| JIS Z3334 | SNi4060 |
| EN ISO 18274 | S Ni 4060 |
| GB T15620 | S Ni 4060 |
▎Applications and Features
- KTS-60 is a 65%Ni-30%Cu-3%Mn-2%Ti Ni-based alloy.
- The proper amount of Mn and Ti helps reduce hot cracking and porosity.
- Suitable for welding Monel 400/404 and ASTM B127 Ni-Cu alloys.
▎Welding Position
▎Welding Instruction
- The welded area should be thoroughly cleaned.
- Heat input should be kept as low as possible, and interpass temperature controlled at around 150 °C.
- Please refer to GTAW welding precautions.
▎Applications
Suitable for welding heat exchangers, pipelines, vessels, and evaporators in offshore engineering, petrochemical, and power industries.
▎Typical Chemical Composition of Weld Metal (wt %)
| C | Si | Mn | P | S | Ti | Fe | Al | Cu | Ni |
| 0.05 | 0.21 | 3.38 | 0.001 | 0.001 | 2.28 | 0.15 | 0.08 | 28.20 | 65.68 |
▎Typical Mechanical Properties of Weld Metal
| Tensile Strength N/mm² | Yield Strength N/mm² | Elongation % | Charpy V-Notch ℃ | Charpy V-Notch J |
| 541 | 331 | 39 | – | – |
▎Size and Suggested Operating Range (DC-)
| Diameter(mm) | 1.0 | 1.2 | 1.6 | 2.0 | 2.4 | 3.2 |
| Length(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
▎Certification
JISZ3323_TCTW08007

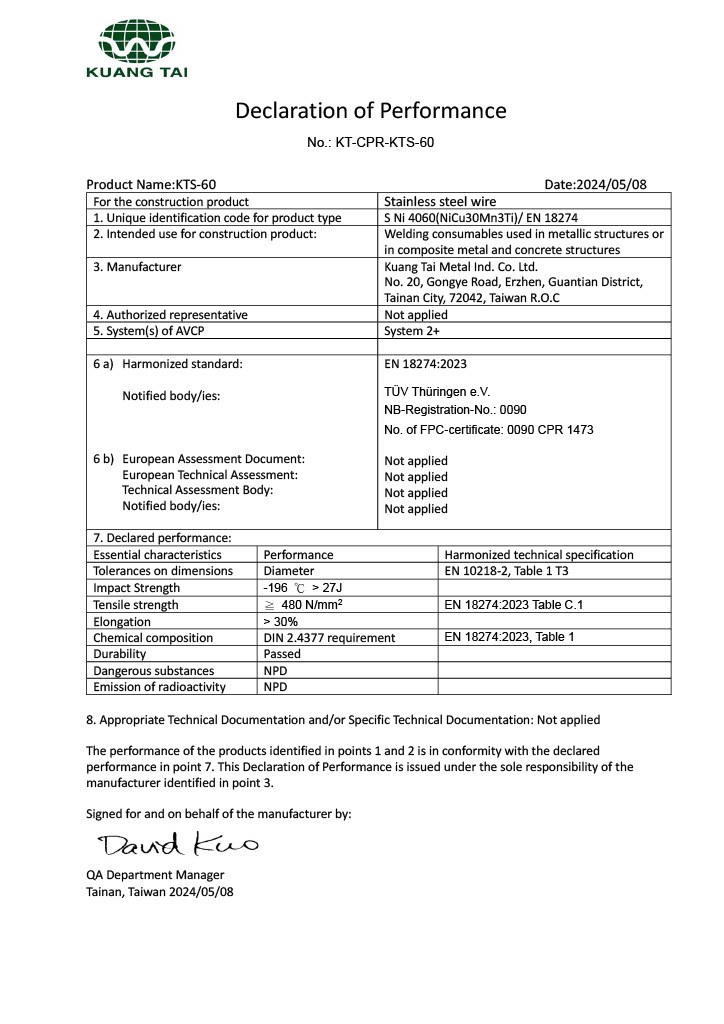

DoP of KTS-60
