KTS-316LSi

Shielding Gas: 100% Ar
KTS-316LSi is a low-carbon austenitic stainless steel containing 19% Cr, 12.5% Ni, and 2.5% Mo.

Catalog Packaging

▎Classification

AWS A5.9/A5.9MER316L Si
JIS Z3321YS316L Si
EN ISO 14343-AW 19 12 3 L Si
YB T5092H03Cr19Ni12Mo2

▎Applications and Features

  • KTS-316LSi is a low-carbon austenitic stainless steel containing 19% Cr, 12.5% Ni, and 2.5% Mo.
  • With higher silicon content, it offers improved weld pool fluidity compared to KMS-316L.
  • It is suitable for AISI 316L steels, or for welding 13Cr and 18Cr steels without post-weld heat treatment.
  • KTS-316LSi is ideal for welding thin plates and tubing used in chemical processing vessels.

▎Welding Position

焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
銲接姿勢
銲接姿勢
焊接姿勢
焊接姿勢

▎Welding Instruction

Please refer to the GTAW welding guidelines for proper usage.

▎Application

KTS-316LSi is ideal for welding thin plates and tubing used in chemical processing vessels.

▎Typical Chemical Composition of Wire (wt%)

CSi
Mn
PSCrNiMo
0.020.741.620.0120.00919.2312.332.31

▎Typical Mechanical Properties of Weld Metal

Tensile Strength
N/mm²		Yield Strength
N/mm²		Elongation
%
58040040

▎Size and Polarity (DC-)

Diameter (mm)1.01.21.62.02.43.2
Length (mm)100010001000100010001000

▎Certification

12
JISZ3323_TCTW08007

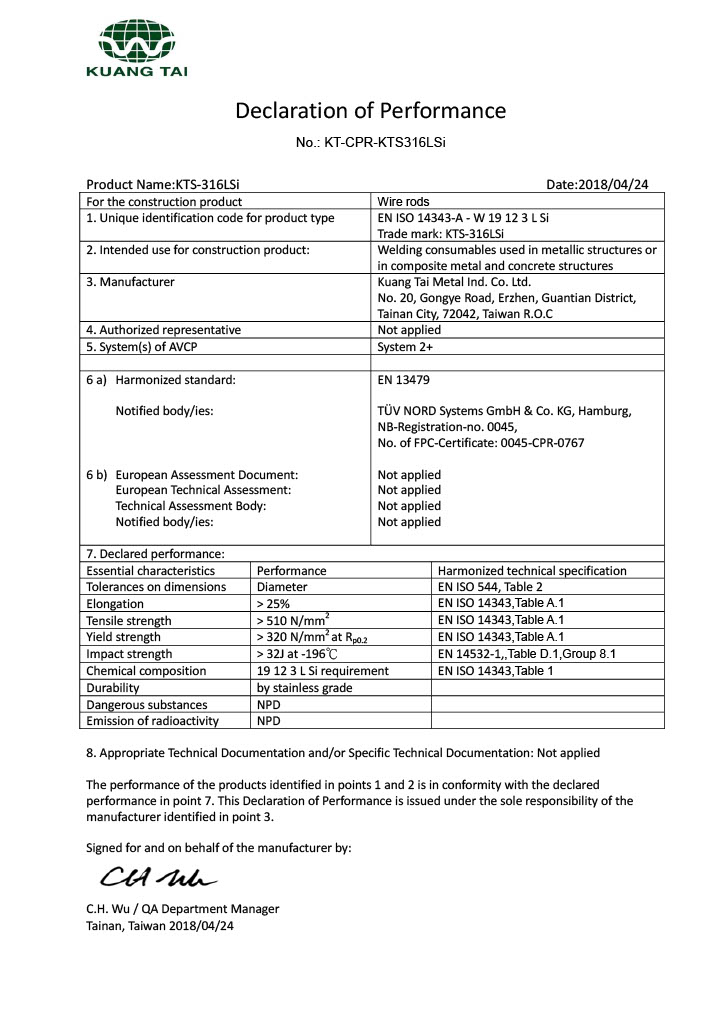

DoP of KTS-316LSi
