碳鋼手焊條
KTS-308LSi

Shielding Gas: 100% Ar
KTS-308LSi is a low-carbon austenitic stainless steel containing 20% Cr and 10% Ni.

Catalog Packaging

▎Classification

AWS A5.9/A5.9MER308LSi
JIS Z3321YS308LSi
EN ISO 14343-AW 19 9 L Si
YB T5092H03Cr21Ni10Si1

▎Applications and Features

  • KTS-308LSi is a low-carbon austenitic stainless steel containing 20% Cr and 10% Ni.
  • With a higher silicon content, it provides better weld pool fluidity than KMS-308L.
  • It is suitable for rapid welding of thin plates of 18% Cr-8% Ni stainless steels, such as AISI 301, 302, 304, 304L, and 308.

▎Welding Position

焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
銲接姿勢
銲接姿勢
焊接姿勢
焊接姿勢

▎Welding Instruction

Please refer to the GTAW welding guidelines for proper usage.

▎Applications

It is suitable for rapid welding of thin plates of 18% Cr-8% Ni stainless steels, such as AISI 301, 302, 304, 304L, and 308.

▎Typical Chemical Composition of Wire (wt%)

CSi
Mn
PSCrNi
0.060.381.820.0130.01120.2110.03

▎Typical Mechanical Properties of Weld Metal

Tensile Strength
N/mm²		Yield Strength
N/mm²		Elongation
%
55040042

▎Size and Suggested Operating Range (DC-)

Diameter(mm)1.01.21.62.02.43.2
Length(mm)100010001000100010001000

▎Certification

12
JISZ3323_TCTW08007

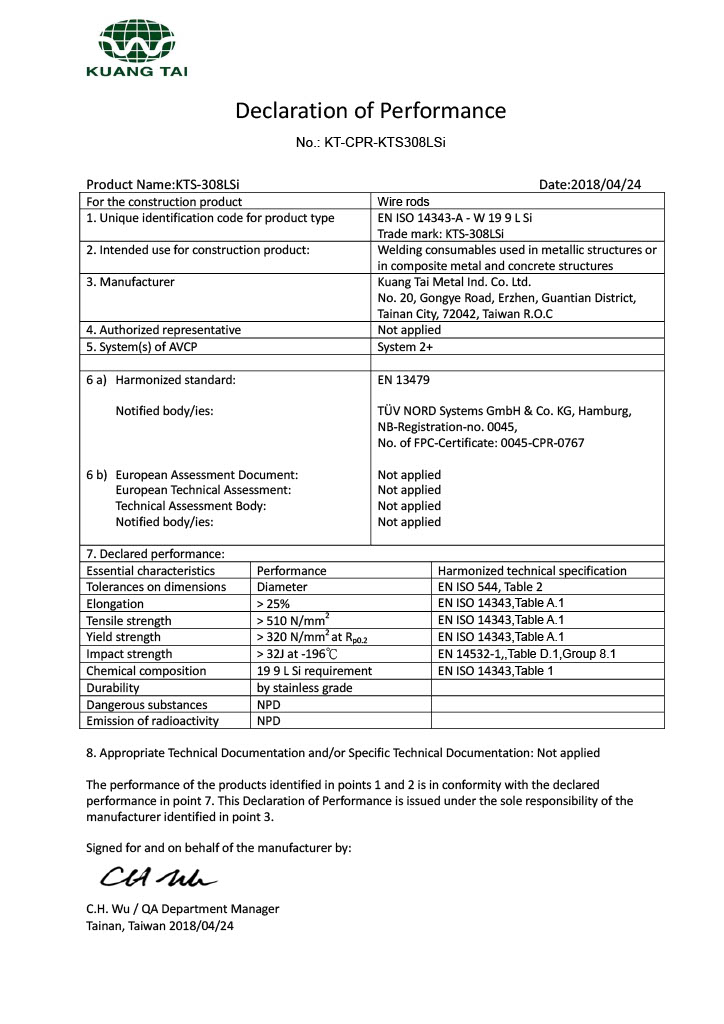

DoP of KTS-308LSi
