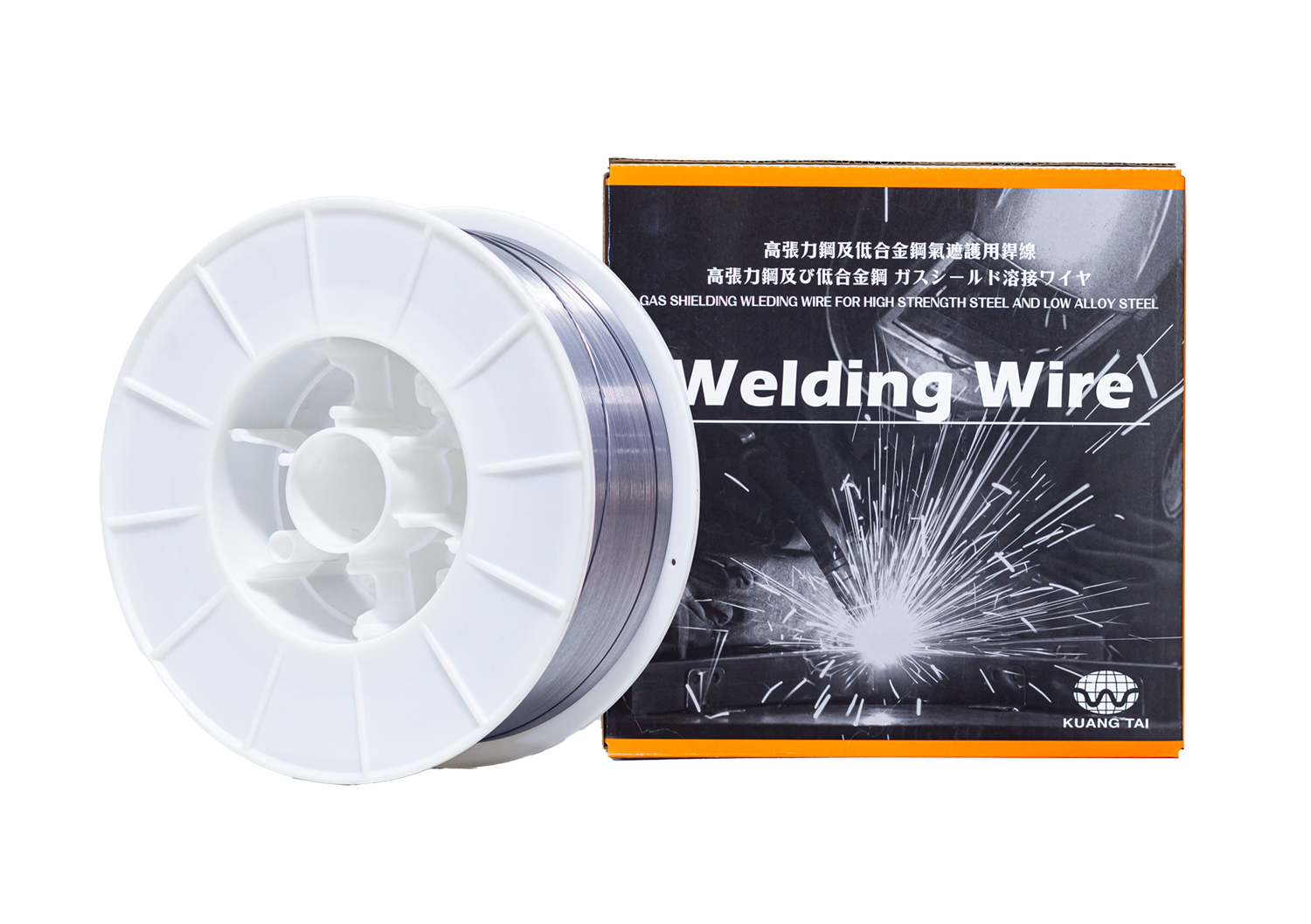

KMX-100G

Shielding Gas: 80%Ar+20% CO2
Suitable for welding 690N/mm2 grade steel.
Ideal for welding vehicles, electric bus, heavy construction machine and coal mining equipment.

Catalog Packaging

▎Classification

AWS A5.28/A5.28M	E100C-G/ E69C-G
JIS Z3313	T694T15-0MA-G
EN ISO 18276-B	T694T15-3M21A-G
GB T17493	E69C-G

▎Applications and Features

Suitable for welding 690N/mm2 grade steel.
Higher deposition rate, faster travel speed, superior arc wetting and better bead appearance.
Ideal for welding vehicles, electric bus, heavy construction machine and coal mining equipment.

▎Welding Position

▎Welding Instruction

Please refer to Appendix C

▎Application

Ideal for welding vehicles, electric bus, heavy construction machine and coal mining equipment.

▎Typical Chemical Composition of Weld Metal (wt%)

C	Si	Mn	P	S	Cr
0.08	0.57	1.75	0.013	0.006	0.55

▎Typical Mechanical Properties of Weld Metal

Tensile Strength N/mm²	Yield Strength N/mm²	Elongation %	Charpy V-Notch ℃	Charpy V-Notch J
723	665	23	-29 -40	112 86

▎Size and Recommended Current Range (DC+)

Diameter (mm)	1.0	1.2	1.4	1.6
F/HF	100-230A	180-350A	200-450	350~600

▎Certification

JISZ3323_TCTW08007
