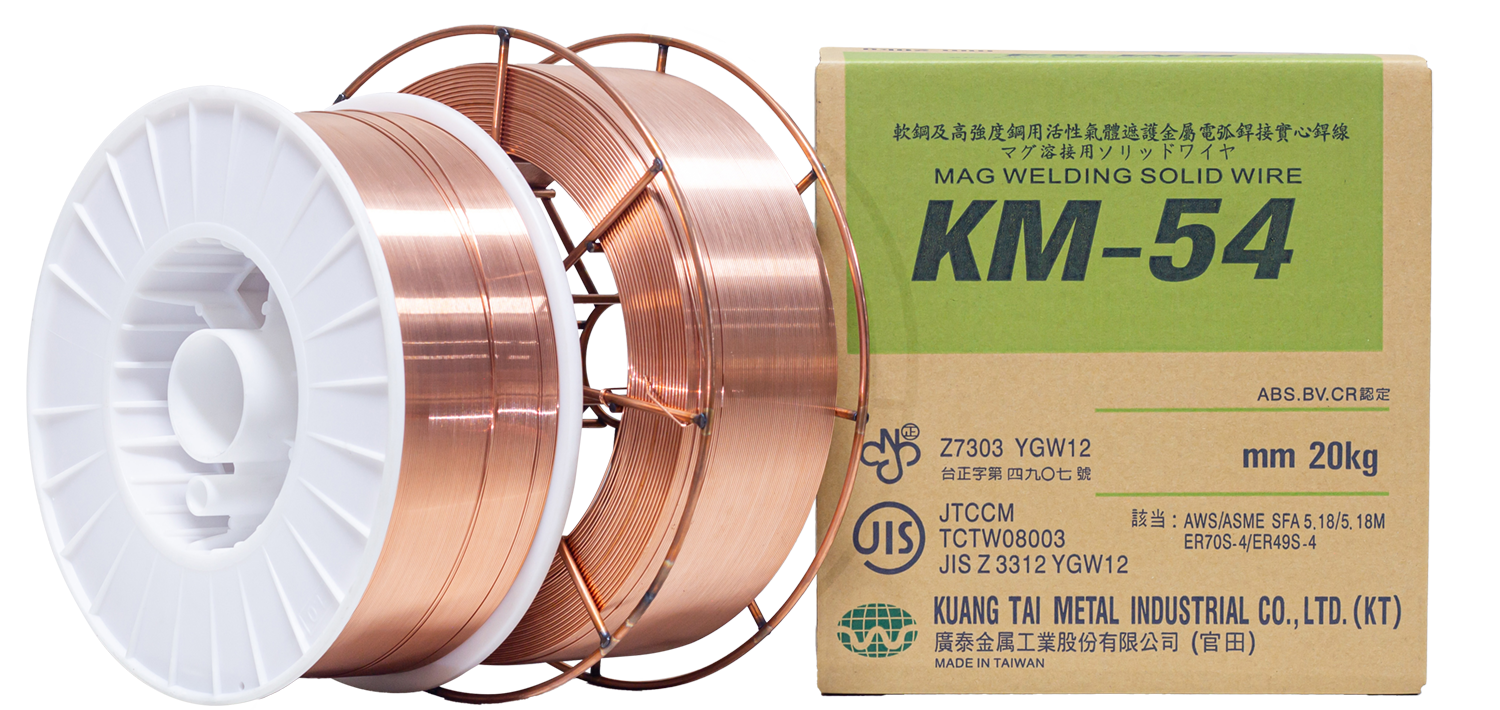

KM-54

KM-54

Shielding Gas: Ar+CO2 or CO2
The shielding gases include Ar/CO2 blends. All Positions electrode or single pass welding with high speed.

Catalog Packaging

▎Classification

AWS A5.18/A5.18M	ER70S-4/ER49S-4
JIS Z3312	G49A3UC4
EN ISO 14341-A	G42 3 C1 3Si1
GB T8110	ER50-4

▎Applications and Features

The shielding gases include Ar/CO2 blends. All Positions electrode or single pass welding with high speed.
In welding metal, there is a lower oxygen level due to the excellent de-oxidative ability.
Ideal for ship-building, vehicles, bridges and pipes with less spatters and arc stability

▎Welding Position

焊接姿勢

焊接姿勢

焊接姿勢

焊接姿勢

焊接姿勢

焊接姿勢

焊接姿勢

焊接姿勢

銲接姿勢

銲接姿勢

焊接姿勢

焊接姿勢

▎Welding Instruction

Please refer to Appendix B.

▎Application

Ideal for ship-building, vehicles, bridges and pipes with less spatters and arc stability.

▎Typical Chemical Composition of Weld Metal (wt. %)

C	Si	Mn	P	S
0.09	0.7	1.06	0.014	0.011

▎Typical Mechanical Properties of Weld Metal

Tensile Strength N/mm2	Yield Strength N/mm2	Elongation %	Charpy V-Notch ℃	Charpy V-Notch J	Shielding Gas
549	460	32	0	176	CO2
578	519	33	-30	84	80%Ar+20%CO2

▎Size and Suggested Operating Range (DC+)

Diameter(mm)	0.9	1.0	1.2	1.4	1.6
F	50-200	80-250	150-350	200-450	250-500
V-up	50-140	80-160	80-180	–	–
OH	50-120	70-120	80-150	–	–
V-down	50-200	80-220	80-240	–	–

▎Certification

JISZ3323_TCTW08007
