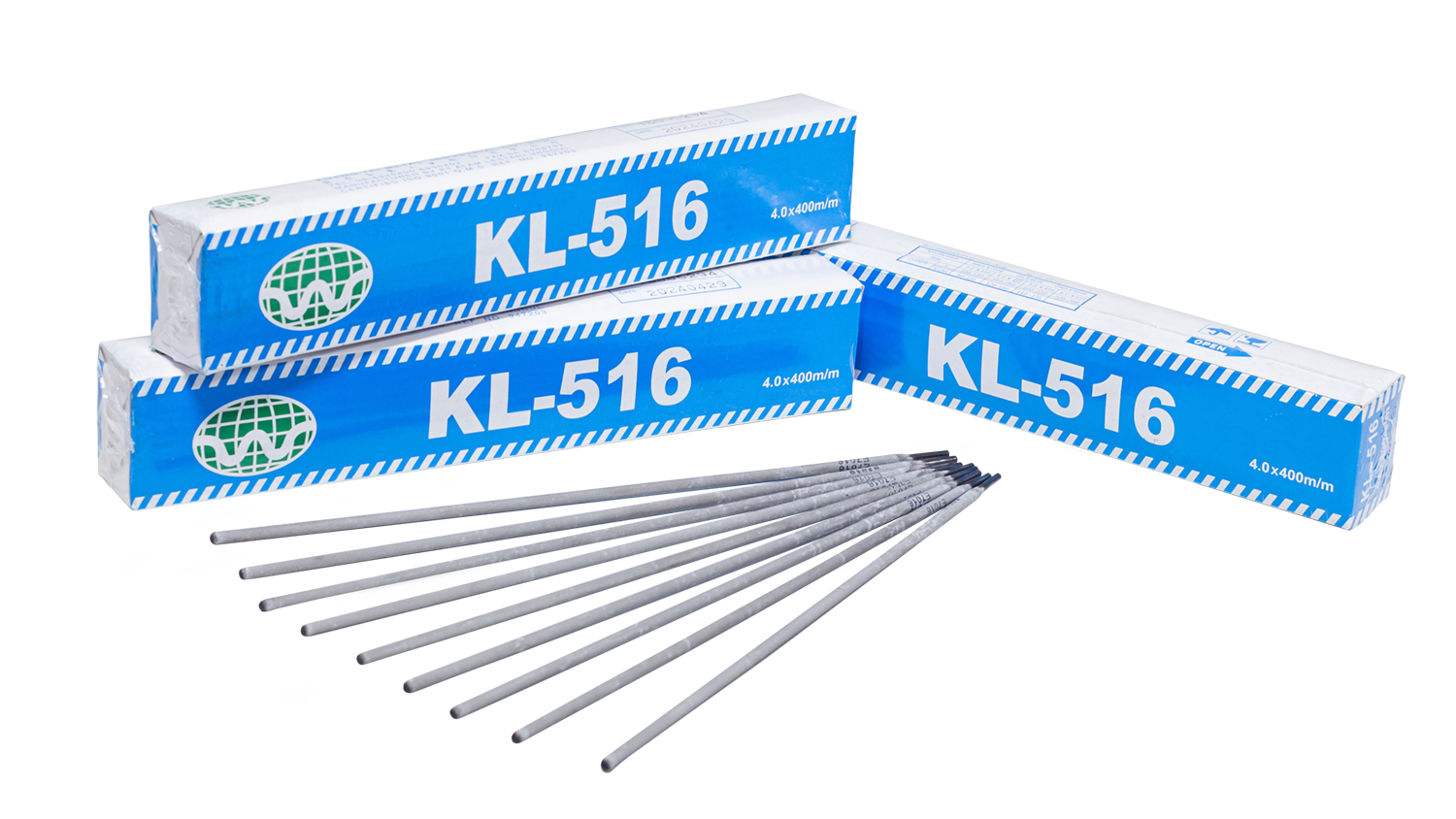

KL-516

Suitable for welding 490N/mm2 grade steel, low alloy steel, medium-carbon steel, heavy steel plates and cast steels.

Catalog Packaging

▎Classification

AWS A5.1/A5.1M	E7016/E4916
JIS Z3211	E4916
EN ISO 2560-A	E42 3 B 1 2
GB T5117	E5016

▎Applications and Features

Suitable for welding 490N/mm2 grade steel, low alloy steel, medium-carbon steel, heavy steel plates and cast steels.
Stable arc, easy control of weld puddle, low spatters, good slag removal and bead appearance, good penetration and X-ray quality.
Applicable for base metal of structural steel, steel tubes for heat exchanger, plate for pressure vessel, low-alloy steel tube and mechanical structural carbon-steel plate.

▎Welding position

▎Welding Instruction

Please refer to Appendix A.

▎Application

Applicable for base metal of structural steel, steel tubes for heat exchanger, plate for pressure vessel, low-alloy steel tube and mechanical structural carbon-steel plate.

▎Typical Chemical Composition of Weld Metal (wt%)

C	Si	Mn	P	S
0.08	0.53	1.02	0.012	0.008

▎Typical Mechanical Properties of Weld Metal

Tensile Strength N/mm2	Yield Strength N/mm2	Elongation %	Charpy V-Notch °C	Charpy V-Notch J
568	468	29	0 -29	211 152

▎Size and Suggested Operating Range (AC or DC+)

Diameter (mm)	3.2	4.0	5.0	6.0
F/HF Current(A)	90-130	130-180	180-240	230-300
V-up/OH Current(A)	80-120	110-160	150-200	–

▎Certification

JISZ3323_TCTW08007
