FCAW
KFW-308L

Shielding Gas：100%CO₂/Ar+20%CO₂
Weld metal is austenitic structure with 18.5% Cr-9% Ni. Excellent weldability and crack resistance due to proper ferrite content in the weld metal.

Catalog Packaging

▎Classification

AWS A5.22/A5.22ME308LT1-1/4
JIS Z3323TS308L-FB1
EN ISO 17633-AT 19 9 L P C1/M21 2
GB T17853E308LT1-1/4

▎Applications and Features

  • Weld metal is austenitic structure with 18.5% Cr-9% Ni.
  • Excellent weldability and crack resistance due to proper ferrite content in the weld metal.
  • Stable arc, good slag removal, low spatters, X-ray quality welds and good penetration.
  • Suitable for welding austenitic stainless steel, such as AISI 301, 302, 304, 305, and 308

▎Welding Position

焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
焊接姿勢
銲接姿勢
銲接姿勢
焊接姿勢
焊接姿勢

▎Welding Instruction

  • For other instructions, please refer to Appendix D.
  • For extra information, please refer to Appendix F

▎Applications

Suitable for welding austenitic stainless steel, such as AISI 301, 302, 304, 305, and 308.

▎Typical Chemical Composition of Weld Metal (wt%)

CSi
Mn
PSCrNi
0.020.480.920.0220.00618.719.30

▎Typical Mechanical Properties of Weld Metal

Tensile Strength
N/mm²		Yield Strength
N/mm²		Elongation
%
67041640

▎Size and Suggested Operating Range (DC+)

Diameter (mm)0.91.21.6
Flat/H-fillet 110-150A150-220A200-300A
V-up100-130A130-160A150-180A

▎Certification

12
JISZ3323_TCTW08007

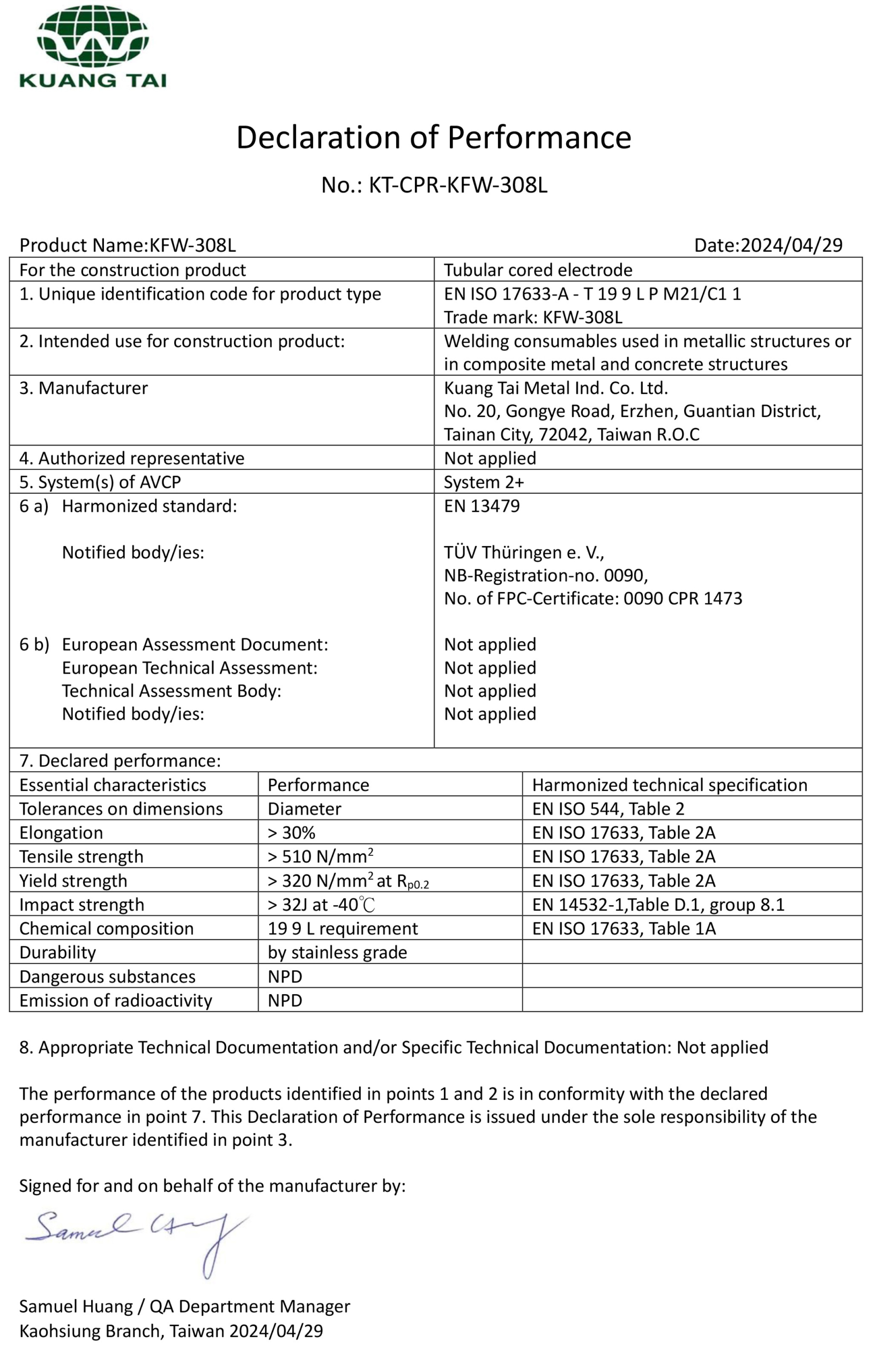

Declaration of Performance
