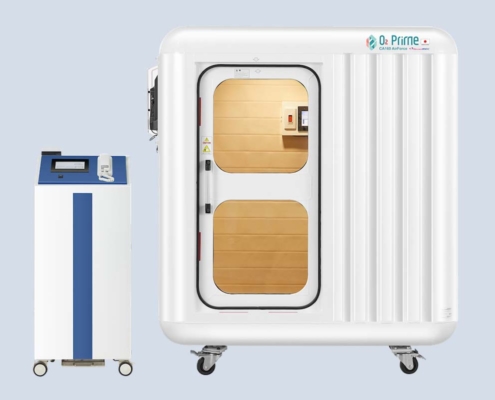

Tai-Long Elite Hyperbaric Oxygen Chamber
🔖MOHW Medical Device Reg. No. 008642🔖

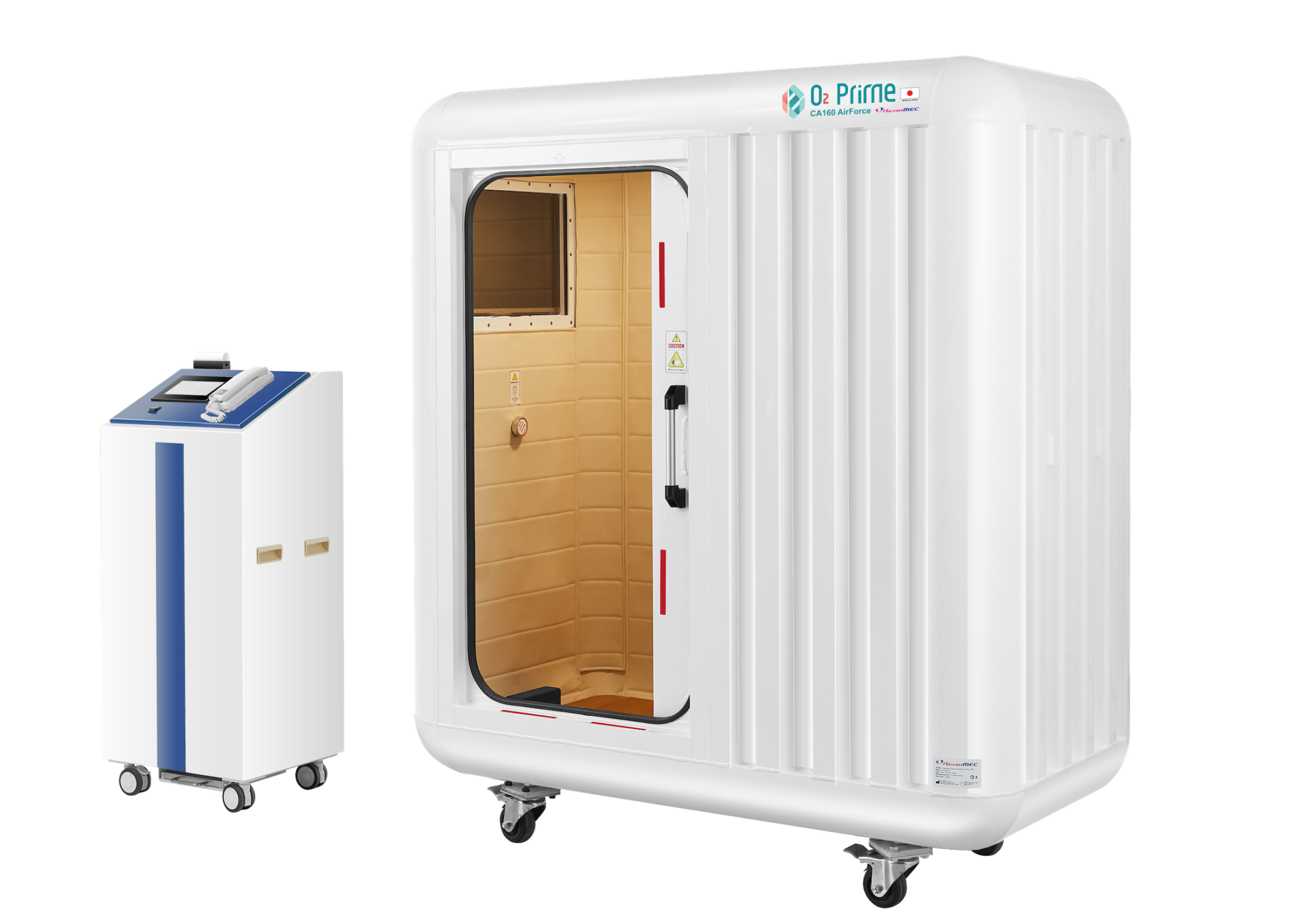

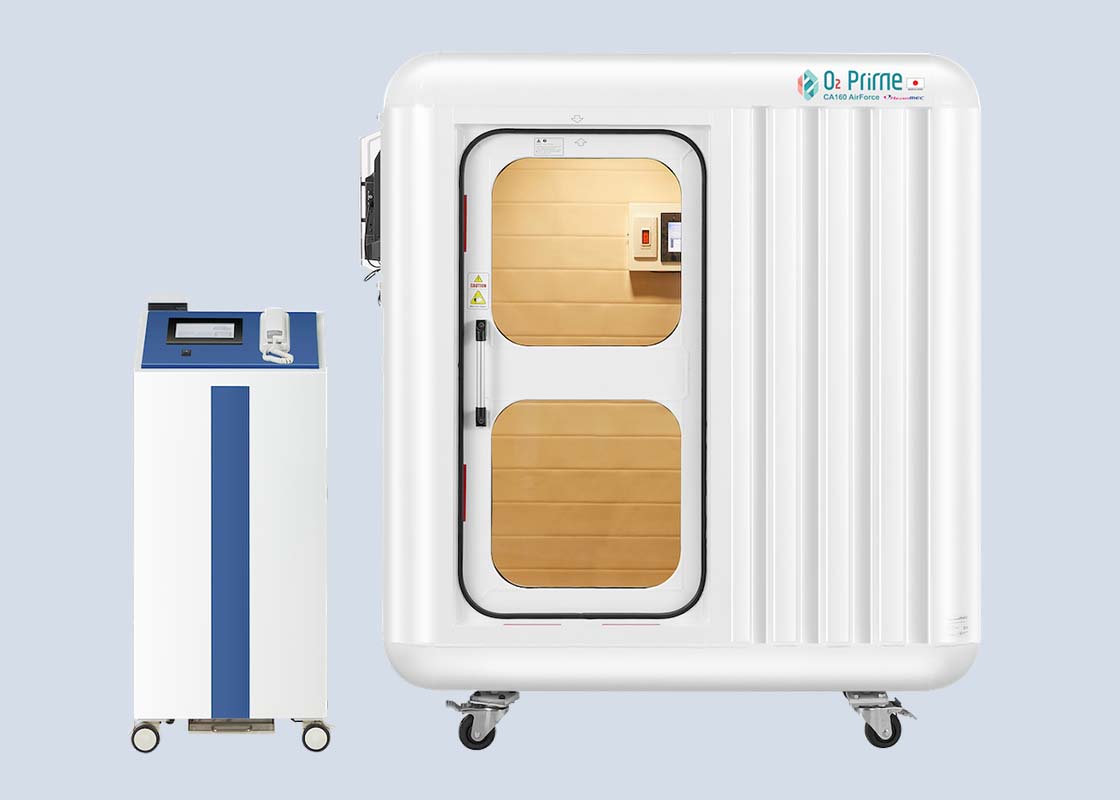

▎Product Model
| Hyperbaric Chamber | ||
| Model | CBE160S / Elite-S | CBE200M / Elite-M |
| Chamber | ||
| Model | CBE160S-P | CBE200M-P |
| External Dimensions | 1600 x 900 x 1700 mm | 2000 x 900 x 1700 mm |
| Material | Aluminum Alloy | |
| Capacity | Single-Place | |
| Maximum Operating Pressure | 1.25 ATA (25 kPa) 及1.35 ATA (35 kPa) | |
| Viewing Window Design | Transparent Reinforced Acrylic | |
| Access Method | Single Sliding Door | |
| Ventilation System | Built-in Ventilation System for Continuous Air Circulation | |
| Safety Devices | Overpressure Protection Valve / Emergency Pressure Relief Valve | |
| Weight | About 280 kg | About 300 kg |
| Control Console | |
| Model | CBE-C |
| External Dimensions | 750 mm x 350 mm x 1050 mm |

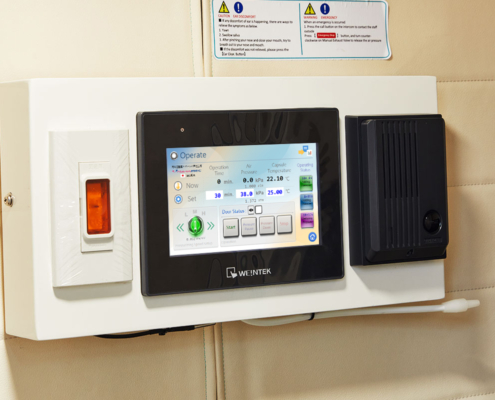

| User Interface | Touchscreen |
| Display System | Pressure | Duration | Temp. Voltage(V) 200~240 V Frequency(Hz) 60 Hz |
| Power Input | Power Input: Max. 900VA |
| Safety Mechanisms | Automatic depressurization upon power loss |
| Weight | About 80 kg |
▎Advantages
Excellent product quality and perfect after-sales service that is the best choice

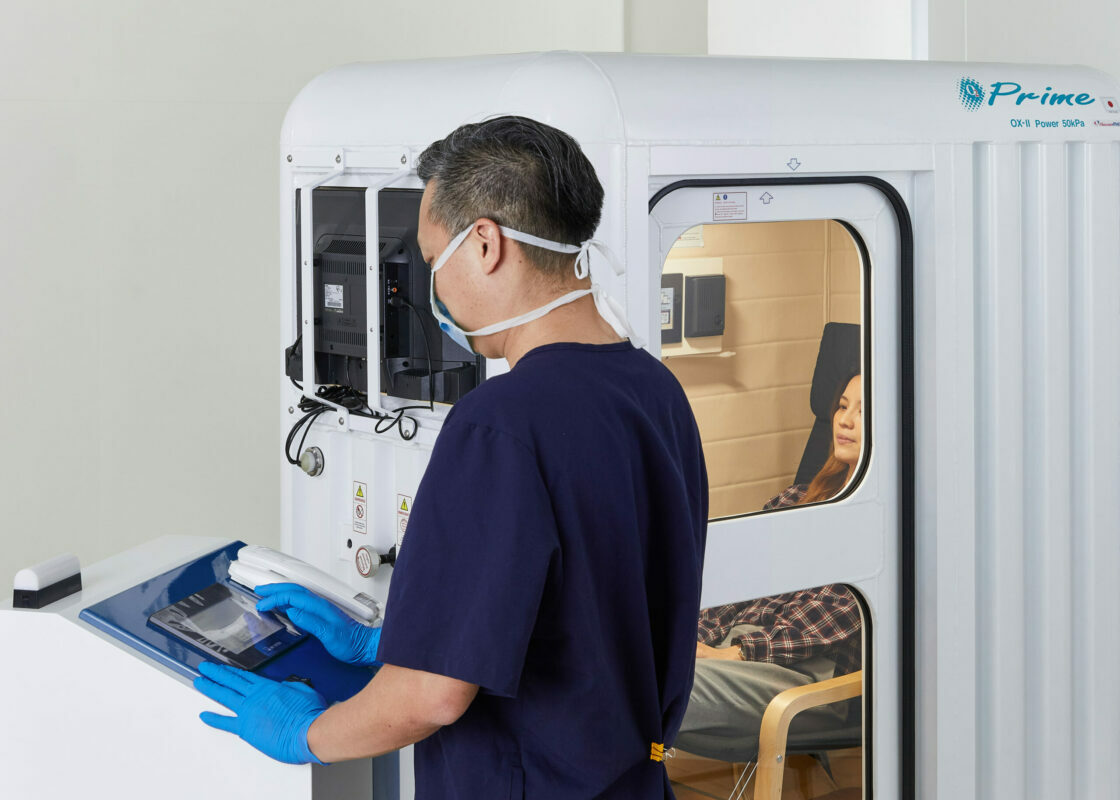

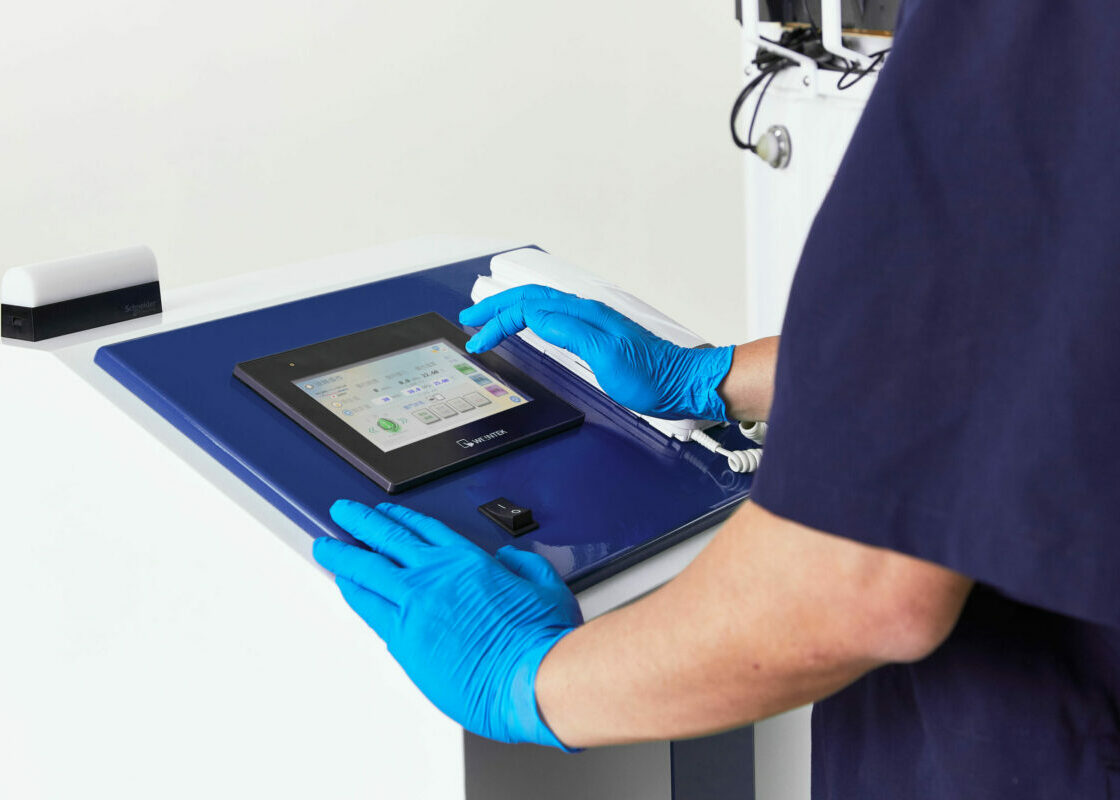

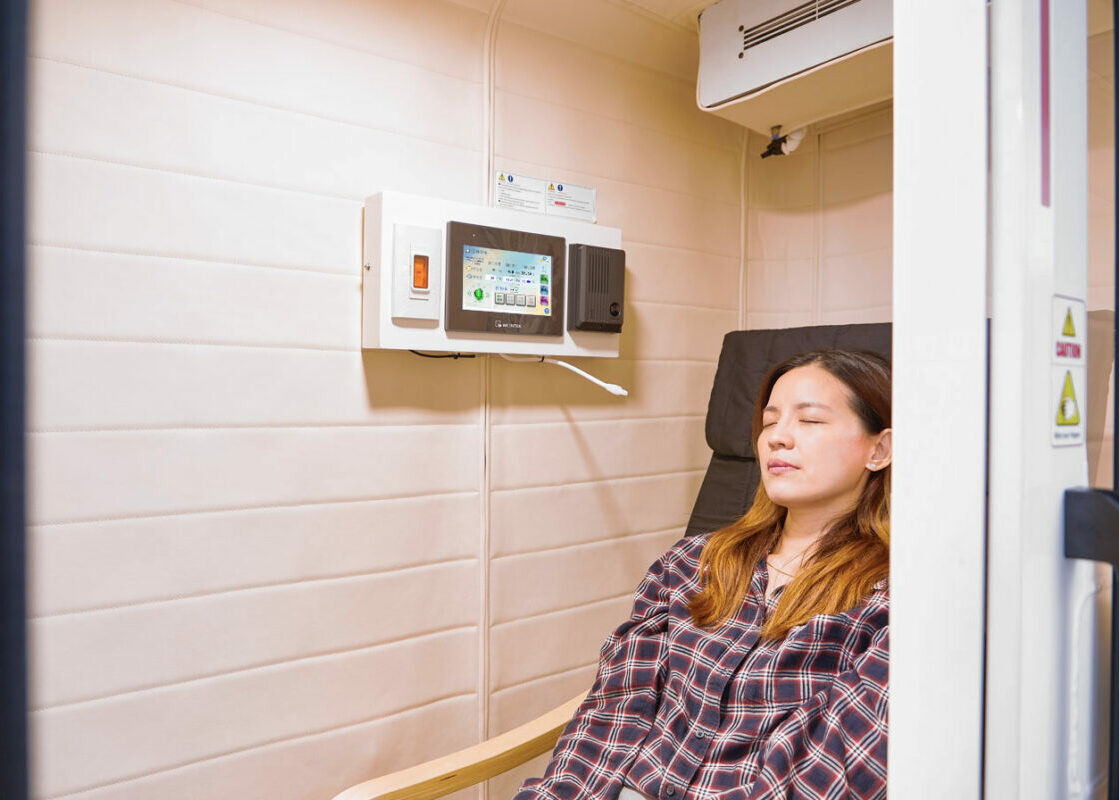

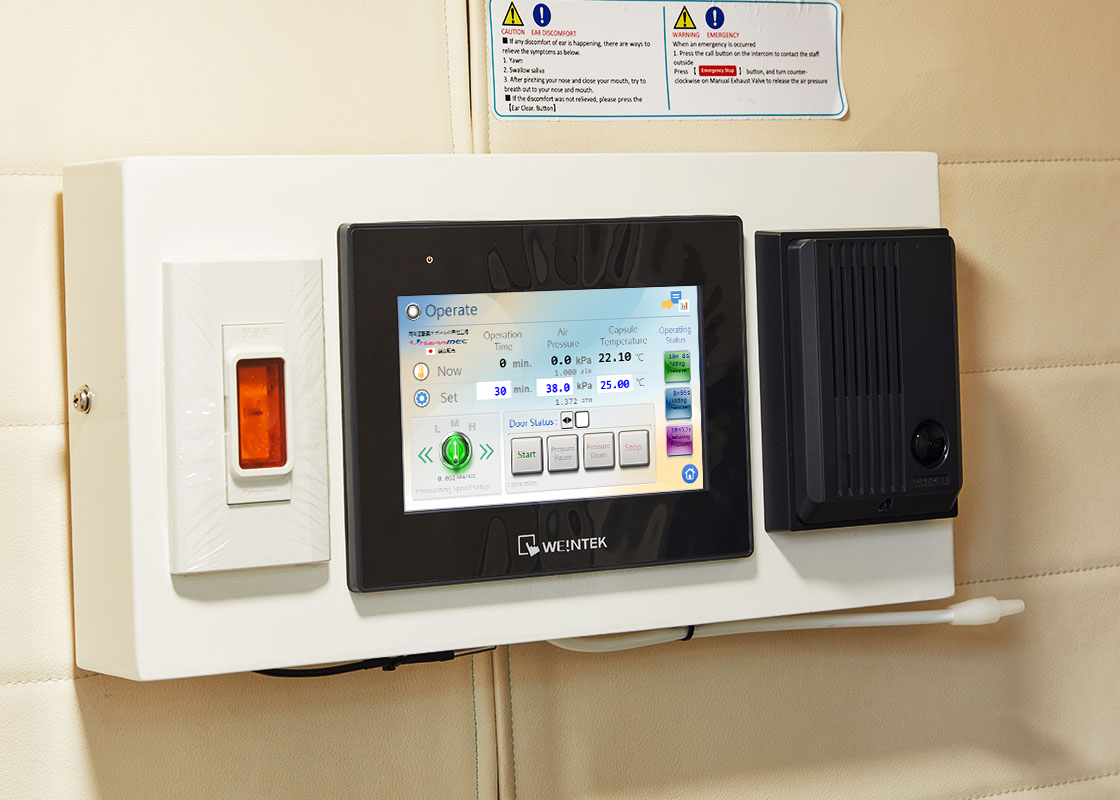

Smart interface
Non-mechanical, using a humanized touch interface, the treatment process is fully automatic, and the operation is simple and easy to use.
Safe and robust
Particular aluminum alloy structure, professional welding technology, lightweight but strong design. It is equipped with a transparent observation window, a two-way communication system, an emergency decompression, and exhaust valve and a safety power-off device to ensure safe use.

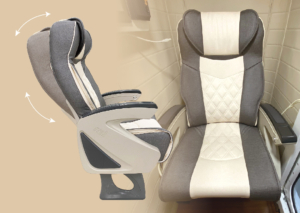

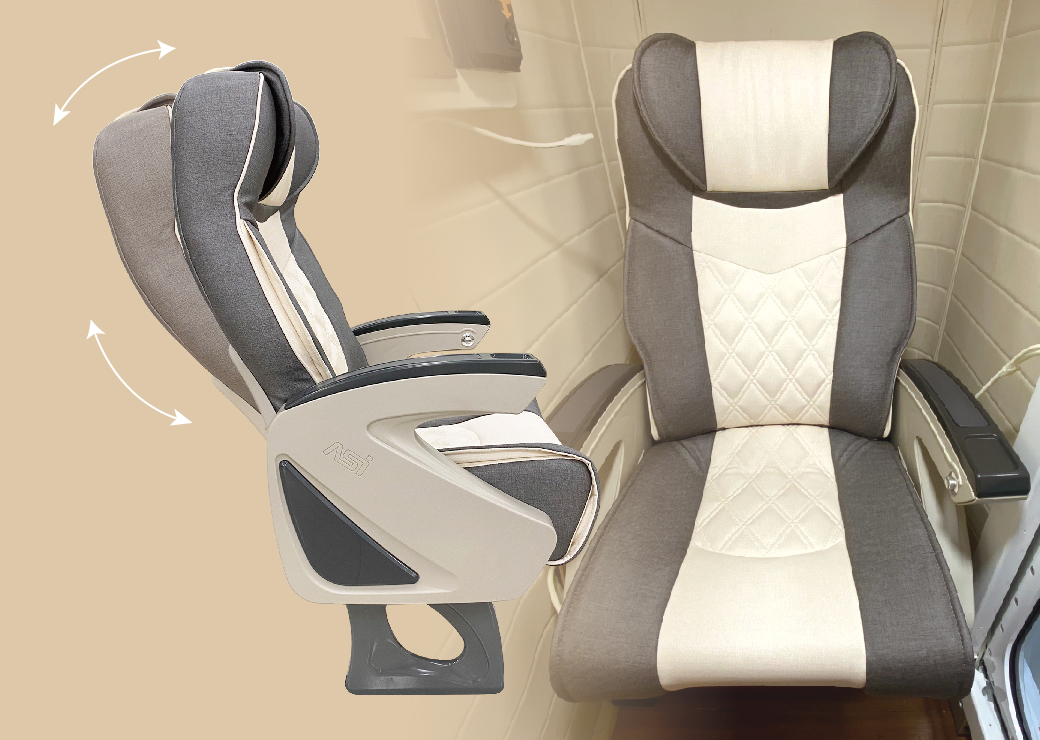

Top Customized Seats
Customized seats from top airlines’ first-class seats quality system, adjustable in forward and backward tilt, provide a more comfortable experience.

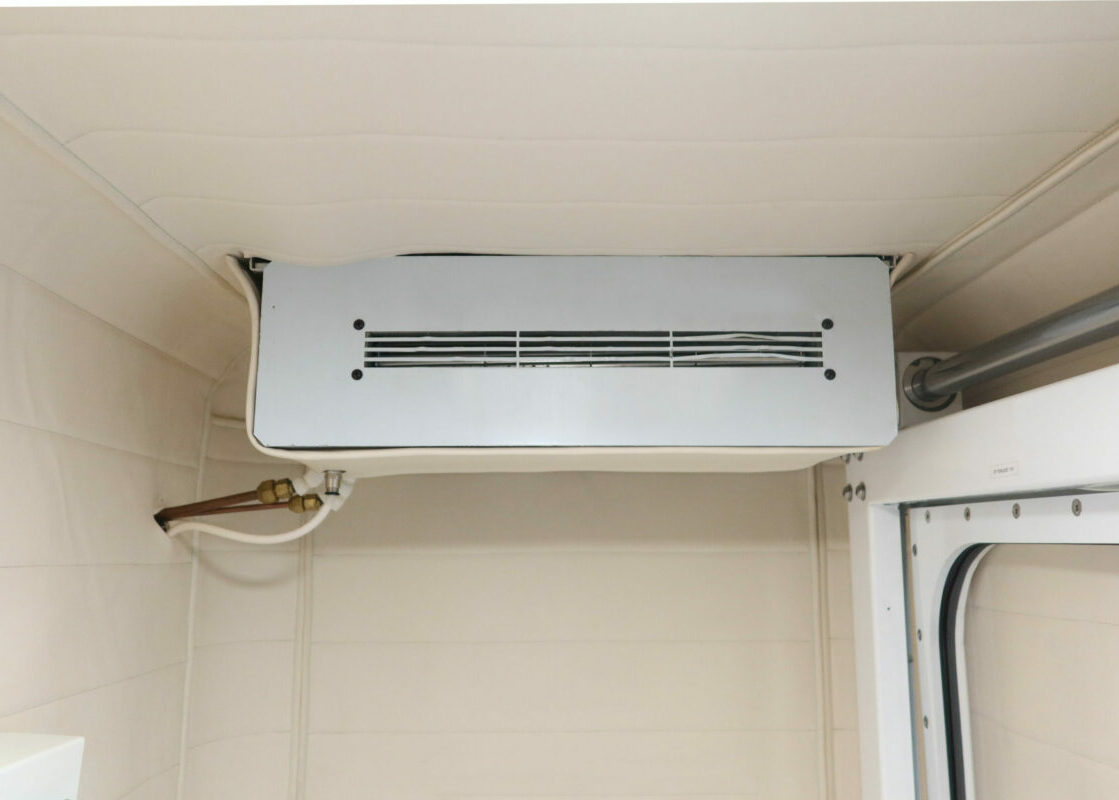

Individual Air Conditioning
Water-Cooled Thermal Balance: Softly soothing away stuffiness to create a perfectly balanced, immersive wellness experience.

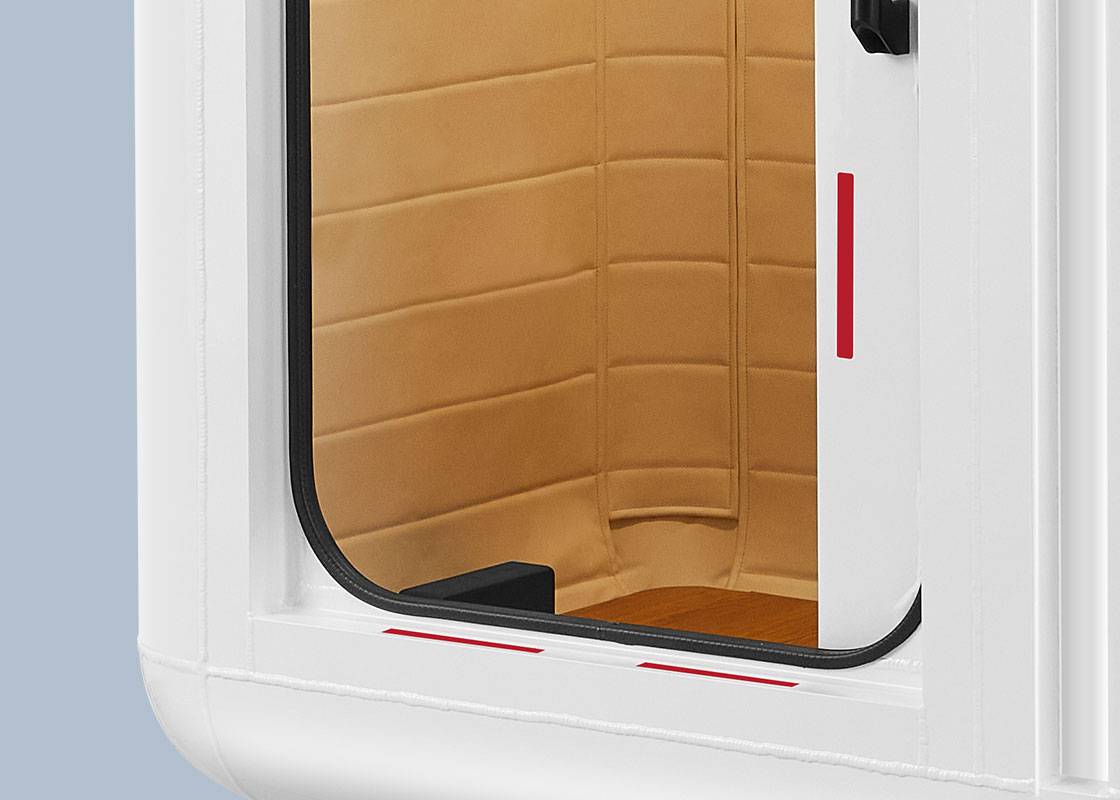

Spacious Cabin
Spacious comfort, exclusive entry: Featuring dual-speed adjustment and micro-pressure relief, backed by overpressure safety controls to craft an unparalleled haven of wellness.
Professional with warranty
Crafted locally with top-tier precision: Exclusive maintenance for long-term peace of mind.
▎WARNING！
Contraindications
- Spontaneous Pneumothorax History of thoracic or ear reconstructive surgery
- Fever (risk of oxygen toxicity)
- History of oxygen allergy or aerobic toxicity
- Colds and rhinitis cause nasal congestion, ear disease
- Claustrophobic patients
- Pregnant
- Equipped with pacemaker
- Epilepsy
- Emphysema with carbon dioxide retention
▎Certificates

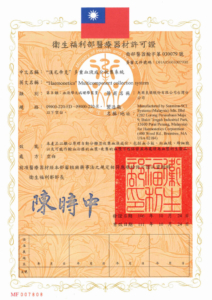

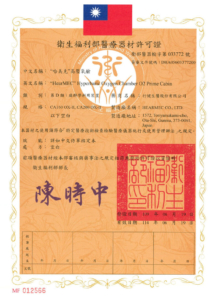

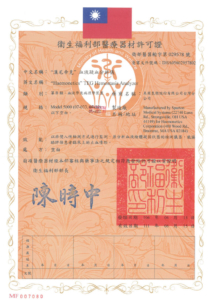

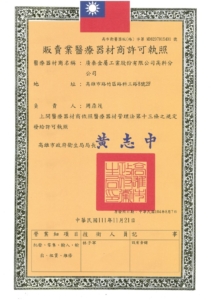

Received Taiwan Food and Drug Administration (TFDA) Medical Device approval
▎SERVICE
FAQ
What are the benefits of hyperbaric oxygen？
In a hyperbaric chamber, due to the increase in pressure, the oxygen content of the body increases, which can promote metabolism, activate tissues, accelerate wound repair, stimulate the production of skin collagen, and improve the ability of white blood cells to phagocytose bacteria.
Am I suitable for hyperbaric oxygen therapy?
Most people are suitable for hyperbaric oxygen treatment or maintenance, but the following symptoms are contraindications to hyperbaric oxygen therapy, including cardiac rhythm regulators, untreated pneumothorax, asthma, chronic obstructive pulmonary emphysema, open Pulmonary tuberculosis, uncontrolled hypertension, uncontrolled internal bleeding, viral infection, epilepsy, claustrophobia, ear disease or reconstruction, pregnancy, other persons who a physician has evaluated as unsuitable.
What precautions should notice in hyperbaric oxygen therapy？
During the operation of the hyperbaric oxygen chamber, the change of the pressure in the chamber, you may feel discomfort in the ear. You can close your lips, squeeze your nose and exhale forcefully, swallow saliva, or use an intercom to contact the operator.
